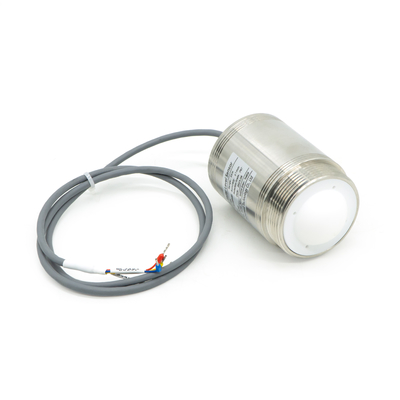

XYLD-08C Metal Radar Level Gauge FM Continuous Wave 80G Radar Level Gauge
| MOQ: | 1 |
| Standard Packaging: | carton |
| Delivery Period: | 5-8 work days |
| Payment Method: | L/C,D/A,D/P,T/T,Western Union |
| Supply Capacity: | 1000pcs/month |
Detail Information
Place of Origin
China
Brand Name
XINYI
Model Number
XYLD-08C
Warranty:
1 YEAR
Cover Flange Material:
SUS316
Vibration:
20HZ-1KHZ To Mechanical Vibration
Product Features:
Good Safety, Strong Adaptability
Housing Protection:
IP65
Single Gross Weight:
4.500 Kg
Power Supply:
24 VDC
Measure Range:
0-100mpa
Application:
Industrial Process Control
The Process Temperature:
-40-120℃
Capability Change:
Less Than 0.16cm3
Nominal Pressure:
(0.25-42) MPa
Hosing Material:
Aluminum Case
Highlight:
80G radar level gauge 24VDC
,radar level meter IP65
,radar level gauge -40-120℃
Product Description
XYLD-08C Metal Radar Level Gauge FM Continuous Wave 80G Radar Level Gauge
The XYLD-08C 80G radar level gauge utilizes frequency modulated continuous wave (FMCW) technology to measure material height or distance through microwave signal transmission and reception. This advanced system emits microwave signals with linearly changing frequency, which reflect off material surfaces to create a measurable frequency difference. By analyzing this difference and time delay with radar wave propagation speed, the device calculates precise material height or distance measurements.
This 80G radar level gauge implements closed-loop control through a triple technical architecture combining high-frequency signals, AI algorithms, and intelligent diagnostics. Its schematic design integrates physical optical characteristics with digital signal processing technology, making it an optimal solution for Industry 4.0 intelligent tank area management, particularly in demanding industrial environments.
Key Product Advantages
- Mobile APP configuration with 4-20mA and RS485 output options
- Enhanced anti-interference capabilities:
- Low-noise anti-interference circuit design
- 3° narrow beam angle for challenging environments with vapor, dust, or foam
- Advanced noise suppression algorithms with false echo learning capability
- Premium construction and performance:
- Aviation-grade aluminum alloy and stainless steel construction for durability and corrosion resistance
- 80GHz FMCW radar technology with ±1mm accuracy and 85M maximum detection range
Technical Specifications
| Parameter | Specification |
|---|---|
| Maximum Range | 5m, 10m, 15m, 20m |
| Measurement Error | ±2mm |
| Beam Angle | ±3° |
| Migration | ±9.9m |
| Signal Output | 4~20mA, RS485, NB-IoT |
| Power Supply | DC 24V |
| Operating Temperature | -20℃ to +70℃ |
| Operating Humidity | 0% to 95% RH |
| Protection Rating | IP67 |
| Display Interface | Mobile Phone APP |
| Construction Materials | ABS+PC, Aluminum Alloy, 304 Stainless Steel |
| Mounting Options | Thread & Bracket |
