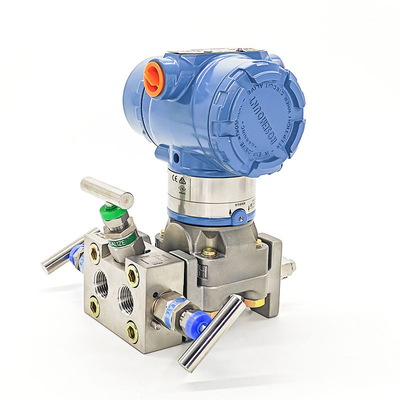

Rosemount 3051CD Differential Pressure Transmitter 5-40 Bar HART 4-20mA
| MOQ: | 1 |
| Standard Packaging: | carton |
| Delivery Period: | 5-8 work days |
| Payment Method: | L/C,D/A,T/T,D/P,Western Union |
| Supply Capacity: | 1000pcs/month |
Detail Information
Place of Origin
China
Brand Name
Rosemount
Model Number
3051CD
Document
Cover Flange Material:
SUS316
Pressure Medium:
Gas Or Liquid
Hs Code:
9026201090
Long Term Stability:
±0.2% Of URL For 5 Years
Certificates:
Ex-proof, CE
Protection Rating:
IP65
Over Pressure Capacity:
15 Times
Storage Temperature:
-40 To 85°C
Ranges:
5~40 Bar
Repeatability:
0.25%~0.5%
Static Pressure:
5X Or 7MPa
Highlight:
Rosemount 3051CD pressure transmitter HART
,differential pressure transmitter 4-20mA
,5-40 bar pressure transmitter with warranty
Product Description
Rosemount 3051CD Differential Pressure Transmitter With HART Communication 4-20mA Output
Product Specifications
| Attribute | Value |
|---|---|
| Cover Flange Material | SUS316 |
| Pressure Medium | gas or liquid |
| Hs Code | 9026201090 |
| Long Term Stability | ±0.2% of URL for 5 years |
| Certificates | Ex-proof, CE |
| Protection Rating | IP65 |
| Over Pressure Capacity | 15 times |
| Storage Temperature | -40 to 85°C |
| Ranges | 5~40 Bar |
| Repeatability | 0.25%~0.5% |
| Static Pressure | 5X or 7MPa |
Product Description
The Rosemount 3051CD is a high-precision intelligent differential pressure transmitter from Emerson's Rosemount brand. Utilizing CoPlanar™ platform design, it supports differential pressure, gauge pressure, and absolute pressure measurement, making it ideal for industrial automation applications in power, petrochemical, chemical, food, and pharmaceutical industries.
Core Features
- Rosemount CoPlanar technology delivers optimized performance for pressure, differential flow, or differential liquid level solutions
- Configurable for specific applications, allowing conversion to flow meters with cumulative function or liquid level transmitters with volume measurement
- Complete pressure, liquid level, or flow components undergo leakage testing and calibration, reducing up to 70% of leakage points and simplifying installation
- 12-year stability with 150:1 range ratio for reliable measurements and application flexibility
- Bluetooth® wireless connection enables easier maintenance without physical connections or separate tools
- Graphic backlit display suitable for various lighting conditions with 8-language support
- Circuit integrity and pressure pipeline blockage diagnostics improve safety and reduce downtime
- Quick service button with built-in configuration simplifies debugging
- SIL 2/3 certification compliant with IEC 6150
- WirelessHART® technology with >99% data reliability and SmartPower module for up to 10 years of operation
Technical Specifications
| Turndown ratio | Up to 150:1 |
| Communication protocol | 4-20 MA HART |
| Measurement range | Differential pressure up to (2000psi) Gauge pressure up to (2000psia) Absolute pressure up to (4000psig) |
| Process liquid contact material | 316L stainless steel, alloy C-276, alloy 400, tantalum, gold-plated 316L stainless steel, gold-plated alloy 400 |
| Wireless update rate | 1 second to 60 minutes, user selectable |
| Wireless range | Internal antenna (225m) |
| Precision | ±0.075% |
| Stability | 0.125% |
