YWKT-150 Intelligent Wireless Liquid Level Transmitter Equipped With Wireless Communication Function
Products
Contact Us
|
YWKT-150 Intelligent Wireless Liquid Level Transmitter Equipped With Wireless Communication Function
| MOQ: | 1 |
| Standard Packaging: | carton |
| Delivery Period: | 5-8 work days |
| Payment Method: | L/C,D/A,D/P,T/T,Western Union |
| Supply Capacity: | 1000pcs/month |
Detail Information
Place of Origin
China
Brand Name
XINYI
Certification
CE
Model Number
YWKT-150
Protection Rating:
IP67
Long Term Stability:
±0.2% Of URL For 5 Years
Measuring Principle:
Absolute And Gauge Pressure
Material:
Stainless Steel
The Process Temperature:
-40-120℃
Accessary:
U-shaped L-shaped, Mounting Bracket
Range:
-10Kpa-0-10Kpa
Pressure Range:
0 ~ 40MPa
Measuring Range:
0.1...0..100MPA
Highlight:
wireless liquid level transmitter
,intelligent liquid level sensor
,liquid level transmitter with wireless communication
Product Description

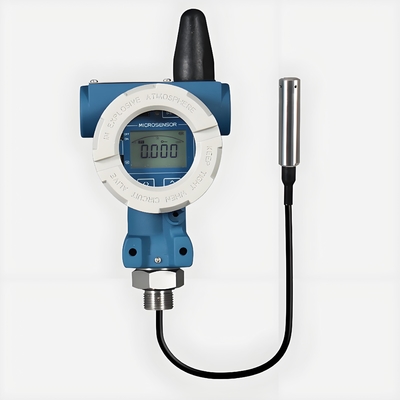

YWKT-150 Intelligent Wireless Liquid Level Transmitter
Product Attributes
| Attribute | Value |
|---|---|
| Protection Rating | IP67 |
| Long Term Stability | ±0.2% of URL for 5 years |
| Measuring Principle | Absolute and gauge pressure |
| Material | Stainless Steel |
| Process Temperature | -40-120℃ |
| Accessory | U-shaped L-shaped, mounting bracket |
| Range | -10Kpa-0-10Kpa |
| Pressure Range | 0 ~ 40MPa |
| Measuring Range | 0.1...0..100MPA |
Product Description
The YWKT-150 wireless liquid level transmitter is a low-power intelligent instrument with wireless communication capability. It features an industrial-grade MCU core and high-quality sensors, utilizing GPRS networks for wireless data transmission to servers. The device automatically reports data at configurable intervals, with remote configuration and monitoring available via web interface. All data is stored in a database for historical analysis.
Users can access instrument data through any internet-connected PC or mobile device, with capabilities for statistical analysis, report generation, and data visualization. With extensive GPRS network coverage, this product enables real-time monitoring of multiple points across large areas, ideal for applications like water tank level monitoring and hydrological measurement. Primary applications include water treatment plants and hydroelectric power facilities.
Key Features
- Wide GPRS network compatibility across regions with China Mobile signal coverage
- Ultra-low power consumption with sleep mode as low as 15uA@12V DC
- Configurable collection and transmission intervals
- PC and mobile data access capabilities
- Power outage alarm with real-time battery voltage monitoring
Technical Specifications
Accuracy:
±0.5%FS
Operation temperature:
-20℃～70℃
Storage temperature:
-30℃～80℃
Electromagnetic compatibility:
GB/T 17626.2/4-2006
Vibration:
≤3g/10Hz...150Hz(IEC 60068-2-6-2007)
Pressure sensing film:
Stainless steel 316L
Electrical connection:
5-core cable (power supply)
