Rosemount 1208 Non-contact Radar Level And Flow Transmitter Radar Level Transmitter
| MOQ: | 1 |
| Standard Packaging: | carton |
| Delivery Period: | 5-8 work days |
| Payment Method: | L/C,D/A,D/P,T/T,Western Union |
| Supply Capacity: | 1000pcs/month |
Detail Information
Place of Origin
China
Brand Name
Rosemount
Model Number
1208
Range:
0-0.2~ 700kPa
Measuring Medium:
Liquid,Gas,Oil
Specification:
Aluminium Alloy Shell.
Valve Connection:
NPT 1/4
Process Thread:
1/4NPT, 1/2NPT, M20*1.5
Operate Temperature:
-20~150℃
Condition:
100% New
Measure Range:
0-100mpa
Certify:
Exida And TUV SIL 2 / SIL3 Certified
Sensor:
Capacitive Sensor
Highlight:
Rosemount 1208 radar level transmitter
,non-contact radar flow transmitter
,liquid level transmitter with warranty
Product Description

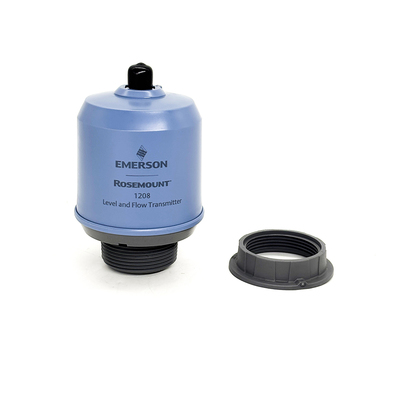

Rosemount 1208 Non-contact Radar Level And Flow Transmitter
The Rosemount 1208 series accurately measures liquid levels and calculates open channel flow rates. Designed for water supply, drainage, utilities, and basic chemical applications, this radar level transmitter features continuous non-contact radar technology with Smart Echo Supervision™ Technology. Its compact PVDF shell is certified for drinking water and food grade applications, with an encapsulated design that withstands outdoor conditions and can be fully submerged.
Key Features
- Smart Echo Supervision™ Technology tracks all echoes, including container obstacles, ensuring accurate liquid level reporting
- Compact, sturdy design withstands harsh environments and supports hazardous location installation
- Bluetooth® wireless technology enables simple configuration via tablets/mobile devices
- Multiple output options: 4-20 mA HART, IO link, and switch outputs for easy system integration
- Maintenance-free operation unaffected by process conditions (density, viscosity, temperature, pressure)
- Quick setup with minimal configuration required
- M12 electrical connectors simplify installation and maintenance
- PVDF shell resists corrosion in wastewater and chemical applications
- Includes flow measurement software for water tanks and open channels
- 1.5" G and NPT process connectors with multiple flange/adapter compatibility
- Drinking water and food grade certified materials
- Fast frequency scanning technology provides continuous surface tracking with high reliability
Technical Specifications
| Product Name | radar level gauge |
|---|---|
| Model | 1208 |
| Stability | 0.5mm |
| Range | 0-80m |
| Temperature range | -40~70℃ |
| Protection level | IP67 |
| Process Connection | G2 thread, NPT 1-1/2 thread or flange |
| Output signal | 4-20mA HART |
| Material | stainless steel |
