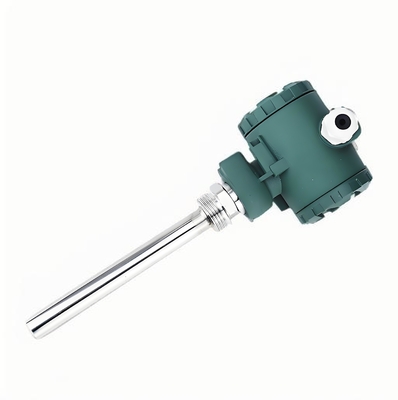

YWKT-1C Plug-in Level Transmitter 4-20mA IP65 316L Stainless Steel
  • Name

YWKT-1C Plug-in Level Transmitter 4-20mA IP65 316L Stainless Steel

MOQ: 1
Standard Packaging: carton
Delivery Period: 5-8 work days
Payment Method: L/C,D/A,D/P,T/T,Western Union
Supply Capacity: 100PCS/Month
Details Information
Product Description
Detail Information
Place of Origin
China
Brand Name
XINYI
Model Number
YWKT-1C
Document
date sheet.pdf
Selling Units:
Single Item
Protection Class:
IP65
Warranty:
12 Months
Secondary Variable:
Static Pressure
Materials:
Gas Or Liquid Compatible With Ceramic
Wetted Materials:
316L Stainless Steel
Operating Temperature:
-40 To 85°C
Vacuum Resistance:
10 Mbar (0.15 Psi)
Measurement Range:
0-1000 KPa
Pressure Port:
G1/4, G1/2 1/4NPT, 1/2NPT And Others
Pressure Sensing Element:
Piezoresistive
Over Pressure Capacity:
15 Times
Pressure Type:
Gauge /Absolute / Sealed Pressure
Highlight:

Plug-in Level Transmitter 4-20mA IP65

,

316L Stainless Steel Level Transmitter

,

Liquid Level Transmitter with warranty

Product Description
China YWKT-1C Plug-in Level Transmitter With 4-20 MA Level Measurement
Product Attributes
Attribute Value
Selling Units Single item
Protection Class IP65
Warranty 12 months
Secondary Variable Static Pressure
Materials Gas or liquid compatible with ceramic
Wetted Materials 316L stainless steel
Operating Temperature -40 to 85°C
Vacuum Resistance 10 mbar (0.15 psi)
Measurement Range 0-1000 kPa
Pressure Port G1/4, G1/2 1/4NPT, 1/2NPT and others
Pressure Sensing Element Piezoresistive
Over Pressure Capacity 15 times
Pressure Type Gauge /Absolute / Sealed Pressure
Product Description

The YWKT-1C liquid level transmitter consists of a fully sealed isolation membrane filled oil level sensor and an instrument specific circuit, which has the advantages of high measurement accuracy, good stability, long service life, and easy installation. Adopting a unique process sealing structure, it has good anti leakage performance and is reliable for long-term immersion in liquids.

Product Features
  • Integrated structure without external adjustment
  • The protection level of the transmitter casing is IP68, and the protection level of the junction box casing is IP65
  • The product has high cost-effectiveness, high reliability, and can be used stably for a long time
Technical Specifications
Supply Voltage 18~36VDC
Output 4~20 mA
Accuracy 0.1%.FS, 0.25%FS, 0.5%FS
Range 0~1 m to 100 m
Medium temperature -40~+85°C
Ambient temperature -10°C~+60°C
Drift ≤0.25%FS
Temperature compensation 0~50°C
External protection IP65
Explosion proof grade dll CT6
Sensor length Cable type with a maximum length of 120m
Display header LCD digital display, LED digital display
YWKT-1C Plug-in Level Transmitter 4-20mA IP65 316L Stainless Steel 0
