Brand New Rosemount 2051TG Series Gauge/absolute Pressure Transmitter
| MOQ: | 1 |
| Standard Packaging: | carton |
| Delivery Period: | 5-8 work days |
| Payment Method: | L/C,D/A,D/P,T/T,Western Union |
| Supply Capacity: | 1000pcs/month |
Detail Information
Place of Origin
China
Brand Name
Rosemount
Certification
CE
Model Number
2051TG
Document
Shell Production:
IP65
Ambient Temperature:
-40~85℃
Static Pressure:
4, 10, 25, 32MPa
Power Supply:
10-30 VDC
Vibration:
20HZ-1KHZ To Mechanical Vibration
Output Signal:
4-20 MA
Using Range:
Gauge Pressure
Pressure:
0-10000pa
Operate Temperature:
-20~150℃
Transmitter Type:
Capacitive Pressure Transmitter
Electric Connector:
Cable, Connector And Optional
Certifications:
CE, ATEX, FM, CSA
Pressure Range:
0-500pa~200kpa
Medium Temperature:
-40 ~ 85℃
Highlight:
Rosemount 2051TG pressure transmitter
,gauge absolute pressure transmitter
,intelligent pressure transmitter with warranty
Product Description

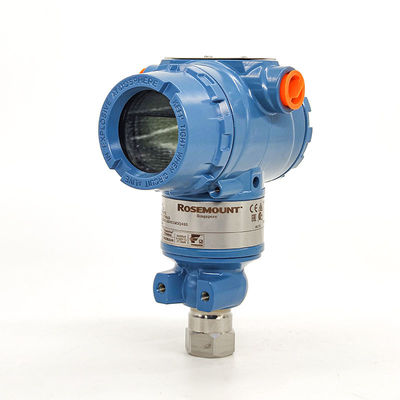

Brand New Rosemount 2051TG Series Gauge/Absolute Pressure Transmitter
The Rosemount 2051TG is a pressure transmitter under the Rosemount brand of Emerson, designed specifically for gauge pressure measurement. It features a single isolation diaphragm structure, integrates sensors and electronic technology, and has a calibration range covering 0.3 to 10000 psi. The core principle converts pressure to capacitance change, outputting 4-20mA or HART/FF signals.
Core Strengths
- High precision to wide range ratio: Accuracy of ±0.075% FS with 100:1 range ratio, supporting measurements from 0.3 to 10000psi. Features Coplanar™ platform integrating multiple pressure measurement functions.
- Long term stability and reliability: Two-year stability ±0.1% (extendable to five years with P8 option). Stainless steel and Hastelloy C isolation diaphragms provide strong corrosion resistance.
- Intelligent Communication and Compatibility: Supports HART 4-20mA, FOUNDATION™ Fieldbus, and PROFIBUS® PA protocols. WirelessHART® reduces installation costs by 60% and deployment time by 65%.
- Security certification and usability: IEC 61508 SIL2/3 safety certified. Features local operating interface (LOI) for simplified configuration and QR code asset tagging.
Application Scenarios
Suitable for pressure measurement of gases, liquids, and vapors. Widely used in industrial process control applications including chemical, petroleum, and power industries.
| Product Name | Pressure transmitter |
|---|---|
| Precision | ±0.075%FS |
| Range ratio | 100:1 |
| Stability | ±0.1% |
| Output Protocol | HART 4-20mA |
| Overvoltage limit | Up to 103.4MPa |
| Isolation membrane | Stainless steel or Hastelloy C |
| Fill liquid | Silicone oil or inert oil |
