Yokogawa High-Precision EJX110A Differential Pressure Transmitter Superior Difference Pressure Transmitter
| MOQ: | 1 |
| Standard Packaging: | carton |
| Delivery Period: | 5-8 work days |
| Payment Method: | L/C,D/A,D/P,T/T,Western Union |
| Supply Capacity: | 100pcs/months |
Detail Information
Place of Origin
China
Brand Name
Yokogawa
Certification
CE
Model Number
EJX110A
Document
Temperature Range:
-40 To 85°C
Electrical Connection:
M12x1 Connector
Accuracy Grade:
1.0%F.S. 0.5%F.S.
Nominal Pressure:
(0.25-42) MPa
Pressure Type:
Gauge Pressure
Dispaly:
With LCD Or Without
Shell Material:
Aluminum Alloy
Bolting:
SCM435, SUS630, Or SUH660
Working Temperature:
-10~70℃
Working Temp:
20- 140 °F(-6.67 To 60°C)
Diaphragm Material:
15-5PH; 17-4PH;316L
Accessary:
U-shaped L-shaped, Mounting Bracket
Highlight:
Yokogawa EJX110A differential pressure transmitter
,high-precision differential pressure sensor
,intelligent pressure transmitter with warranty
Product Description

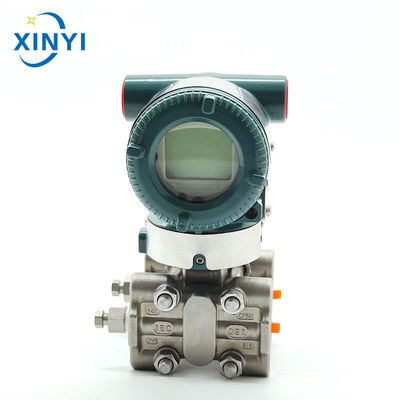

Yokogawa High-Precision EJX110A Differential Pressure Transmitter
Superior Difference Pressure Measurement Solution
The EJX110A high-performance differential pressure transmitter utilizes monocrystalline silicon resonant sensor technology for precise measurement of flow rate, liquid level, density, and pressure of liquids, gases, or vapors. This transmitter converts differential pressure into a 4-20mA DC current signal output while providing static pressure measurement, display, and remote monitoring capabilities. Engineered for industrial reliability, it features fast response times, remote configuration, and advanced self-diagnostic functions.
Core Features
- High precision and long-term stability: ±0.04% basic accuracy with ±0.1% stability over 10 years (compared to EJA110A's ±0.1%/5 years). Features 200:1 adjustable range for wide measurement applications.
- Advanced diagnostic capabilities: 40 self-diagnostic functions including patented Back Check technology for real-time data verification. Active sensor (DPharp) detects signal interruptions and distinguishes between no pressure changes and sensor faults.
- Pressure system monitoring: Includes pressure pipe blockage detection and heat tracing monitoring to prevent unplanned downtime.
- Multi-protocol communication: Supports HART, FF fieldbus, PROFIBUS PA, and BRAN protocols with 4-20mA analog output. Configurable via LCD display or remote protocols.
- Robust industrial design: Four-bolt pressure retention structure with PTFE-coated 316L stainless steel flange gasket. ANSI/ISA 12.27.01 dual seal certified with IP67/NEMA 4X protection and explosion-proof certifications (FM, ATEX, CSA).
Technical Specifications
| Product Name | Pressure transmitter |
|---|---|
| Differential pressure range | 0.1kPa~2000kPa |
| Static pressure measurement | Approximately 248 bar |
| Output signal | 4~20mA DC |
| Basic accuracy | ±0.04% |
| Long-term stability | ±0.1%/15 years |
| Response time | 90 milliseconds |
| Optional materials | Hastelloy C-276, Monel |
