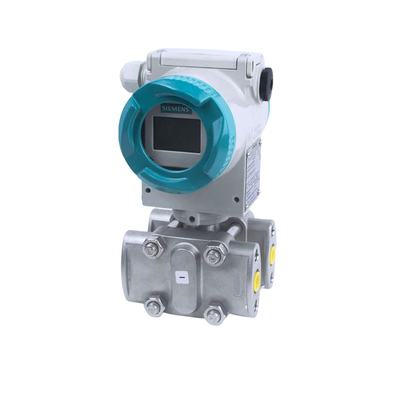

High Precision Siemens 7MF4233 Series Intelligent Pressure Transmitter
| MOQ: | 1 |
| Standard Packaging: | carton |
| Delivery Period: | 5-8 work days |
| Payment Method: | T/T,D/P,D/A,L/C,Western Union |
| Supply Capacity: | 1000pcs/month |
Detail Information
Place of Origin
China
Brand Name
Siemens
Certification
CE
Model Number
7MF4233
Pressure Range:
-0.1....0~0.01... ~100MPa
Display Type:
LCD
Media:
Liquid, Gas, Or Steam Flow
Storage Temperature:
-40 To 85 Degrees Celsius
Protection Rating:
IP65
Fill Fluid:
Silicone, Fluorinated Oil (option)
Process Thread:
1/4NPT, 1/2NPT, M20*1.5
Pressure Port:
G1/4, G1/2 1/4NPT, 1/2NPT And Others
Span Limits:
0.3 ... 10000 KPa
Signal Output:
4-20mA Hart
Power Supply:
12-36 VDC
Highlight:
Siemens 7MF4233 pressure transmitter
,intelligent pressure transmitter with warranty
,high precision industrial pressure transmitter
Product Description
High Precision Siemens 7MF4233 Series Intelligent Pressure Transmitter
The Siemens 7MF4233 series belongs to the SITRANS P DS III series differential pressure/pressure transmitters, which use intelligent sensor technology and are suitable for pressure, differential pressure, flow, and liquid level measurement in industrial process control. This series is renowned for its high precision (typical precision 0.075%) and modular design, supporting 4-20mA analog signal output and multiple digital communication protocols.
Working Principle
1. Pressure Sensing and Conversion
- The measured pressure acts on the sensor diaphragm (made of monocrystalline silicon material), causing slight deformation of the diaphragm
- This deformation results in changes in the resistance value of the internal Wheatstone bridge
- The weak voltage signal output by the bridge is processed by a high-precision amplification circuit and converted into an electrical signal proportional to the pressure (such as 4-20mA or digital signal)
2. Signal Processing and Output
- Built-in microprocessor linearizes, temperature compensates, and self-diagnoses signals to ensure output accuracy (0.075%)
- Supports HART, PROFIBUS-PA, or FF fieldbus protocols for remote communication and parameter configuration
3. Typical Application Scenarios
- Differential pressure measurement: Detecting fluid pressure difference (such as flow rate and liquid level) through double-sided pressure pipes
- Absolute pressure measurement: Reference measurement of absolute pressure in a vacuum chamber (such as a vacuum system)
| Product Name | Pressure transmitter |
|---|---|
| Measurement range | 0-400 kPa |
| Output signal | 4-20mA (two-wire system) |
| Power supply voltage | 18-30V DC |
| Operating Temperature | -40℃ to +150℃ |
| Protection level | IP67 |
| Process connection | 1/2" NPT, G1/2 and other threaded interfaces |
| Precision | 0.075% |
