YW-60B High-precision Precision Digital Pressure Gauge Radial Direct Installation
| MOQ: | 1 |
| Standard Packaging: | carton |
| Delivery Period: | 5-8 work days |
| Payment Method: | L/C,D/A,D/P,T/T,Western Union |
| Supply Capacity: | 1000pcs/month |
Detail Information
Place of Origin
China
Brand Name
XINYI
Model Number
YW-60B
Document
Connections:
1/8 "NPT
Display Mode:
Four Figures LCD Display
Protection Degree:
IP65
Connector Size:
M14X1.5
Connection Material:
SS316L
Display Function:
Colour Graphic Display
Others:
Rs 232 ,rs485,usb Output
Original Place:
Made In China
Port:
Shanghai Or Ningbo
Mounting:
Radial Direction Mounting
Explpsion Proof:
ExiaIICT4 Ga
Work Temp:
-20~80C
Highlight:
high-precision digital pressure gauge
,radial mount pressure gauge
,direct installation pressure gauge
Product Description

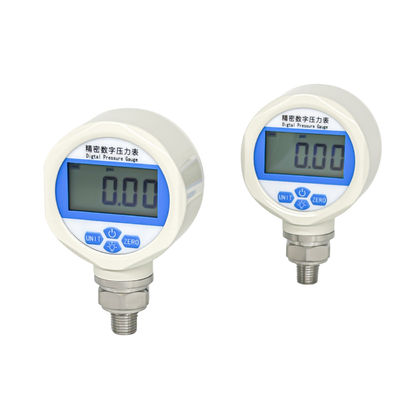

YW-60B High-precision Precision Digital Pressure Gauge Radial Direct Installation
The YW-60B precision digital pressure gauge features a robust construction with housing, pressure sensor, and signal processing circuit system. Engineered for industrial applications, it delivers exceptional performance with high accuracy, corrosion resistance, and stability across varying temperature ranges.
Key Features
- High-precision pressure sensor core with minimal temperature drift
- Excellent corrosion resistance and vibration/impact protection
- Low-power microprocessor for efficient operation
- Available in gauge pressure, differential pressure, and absolute pressure variants
- Suitable for low, medium, and high pressure ranges
- Designed for normal, medium, and high temperature environments
- Ideal for precise measurement in petroleum, chemical, aviation, and industrial applications
Instrument Operation
- Left Button: Long press (≥2s) for power on/off; short press to toggle backlight
- Right Button: Long press (≥2s) for zero reset when no pressure applied; short press to switch units
Technical Specifications
| Product Name | Digital Pressure Gauge |
|---|---|
| Range | -0.1 to 0 to 40 MPa |
| Accuracy Class | 0.2, 0.25, 0.4, 0.5 |
| Display | Dynamic display with up to 5 digits |
| Overload Pressure | 1.5 times the rated pressure |
| Power Supply | 2 AA batteries |
| Medium Temperature | -20°C to 80°C |
| Operating Temperature | Operating Temperature |
| Operating Humidity | ≤80% RH |
| Standard Thread Interface | M14*1.5 (other threads available upon request) |
