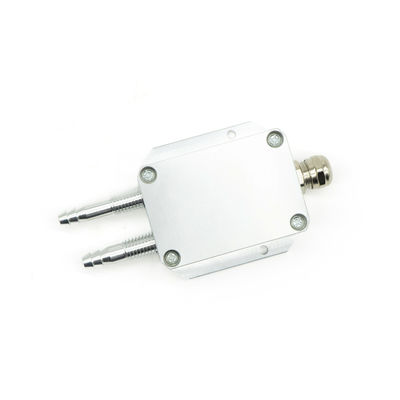

Wind Pressure Transmitter Air Pressure Micro Differential Pressure Sensor Air Duct Pressure
| MOQ: | 1 |
| Standard Packaging: | carton |
| Delivery Period: | 5-8 work days |
| Payment Method: | L/C,D/A,D/P,T/T,Western Union |
| Supply Capacity: | 1000pcs/month |
Detail Information
Place of Origin
China
Brand Name
XINYI
Certification
CE
Range Ratio:
Up To 200:1
Protection:
IP65
Pressure Measurement:
Gauge Pressure, Differential Pressure
Output Signal:
4-20 MA
Color:
Weight
Linearity:
0.03%
Temperature:
-40ºC...85ºC
Maximum Turndown Ratio:
100:1
Storage Temperature:
-40 To 85 Degrees Celsius
Medium Temperature:
-196°C~600°C
Application:
Wide Application Range
Highlight:
wind pressure transmitter with warranty
,air duct pressure sensor
,micro differential pressure transmitter
Product Description
Wind Pressure Transmitter Air Pressure Micro Differential Pressure Sensor Air Duct Pressure
The wind pressure transmitter is an industrial measuring instrument that converts gas or liquid pressure signals into standardized electrical signals. It is widely used in industrial control, HVAC, petrochemical, and other applications.
Working Principle
The wind pressure transmitter senses pressure changes through pressure-sensitive components such as diffused silicon or ceramic thick film resistors, forming a Wheatstone bridge structure. When subjected to pressure, the change in resistance value generates an electrical signal, which is amplified and processed to output standard signals such as 4-20mA, 0-10V, or RS485. Some models use imported sensors (such as Honeywell chips) with integrated temperature compensation and anti-interference design.
Technical Specifications
| Product Name | Wind pressure transmitter |
|---|---|
| Power supply | 12VDC~36VDC |
| Output signal | 4-20mA |
| Measurement range | -100KPa~0~100KPa |
| Compensation temperature | 0~50℃ |
| Ambient temperature | -20~45℃ |
| Working method | Differential pressure |
| Comprehensive accuracy | 0.2/0.5 |
| Zero temperature drift | ±0.03%FS/°C |
| Sensitivity temperature | ±0.03%FS/℃ |
