Domestic YW-130 Differential Pressure Transmitter Rod Pressure Sensor
| MOQ: | 1 |
| Standard Packaging: | carton |
| Delivery Period: | 5-8 work days |
| Payment Method: | Western Union,T/T,D/A,D/P,L/C |
| Supply Capacity: | 1000 Pcs/month |
Detail Information
Place of Origin
China
Brand Name
XINYI
Model Number
YW-130
Document
Thread:
Male And Female OEM
Power Supply:
10-30 VDC
Quality:
High Quality
Shell Production:
IP65
Trademark:
HT Sensor
Process Thread:
1/4NPT, 1/2NPT, M20*1.5
Stability:
+-0.1%F.S/Year
Medium Temperature:
-40 ~ 85℃
Item:
4-20ma Pressure Sensor Transmitter
Package Gross Weight:
3.800kg
Nominal Pressure:
(0.25-42) MPa
Medium:
Gas Or Liquid Compatible With Ceramic
Range:
0-100 Mbar
Shipping Cost:
To Be Negotiated
Highlight:
differential pressure transmitter rod
,domestic pressure sensor
,intelligent pressure transmitter with warranty
Product Description

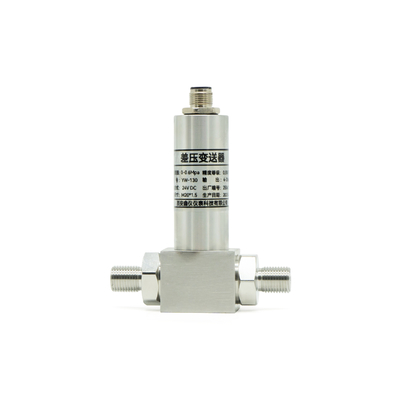

Domestic YW-130 Differential Pressure Transmitter Rod Pressure Sensor
The rod-shaped pressure transmitter is precisely calibrated for zero and full-scale output. It utilizes diffusion silicon sensors with stainless steel isolation membranes, dry ceramic capacitive sensors, or ceramic piezoresistive sensors. Designed for direct installation on flange interfaces of pressure pipelines, it includes provisions for shut-off valve installation between the flange and pipeline for easy maintenance. The transmitter compensates for installation position effects on zero point and ensures material compatibility with the measured medium.
Product Features
- Multiple range options with convenient user debugging
- Reverse polarity protection and current limiting protection
- Protection against lightning strikes and radio frequency interference
- Intrinsically safe explosion-proof design
- Compact size with attractive appearance and high cost-effectiveness
- High precision, stability, and reliability
Product Advantages
- Intelligent functionality: Supports self-diagnosis, remote calibration, and temperature compensation to minimize manual intervention
- Superior anti-interference: Incorporates FPGA digital filtering technology for reliable operation in harsh industrial environments
- Material versatility: Optional 316 stainless steel diaphragm provides exceptional corrosion resistance
Technical Specifications
| Product Name | Differential pressure transmitter |
|---|---|
| Precision | 0.5/0.2 |
| Range | 0kPa ~ 35kPa~3.5MPa |
| Model | YW-130 |
| Output | 4 - 20mA |
| Power supply | 24V DC |
| Thread | M20*1.5 |
| Material | Stainless steel |
