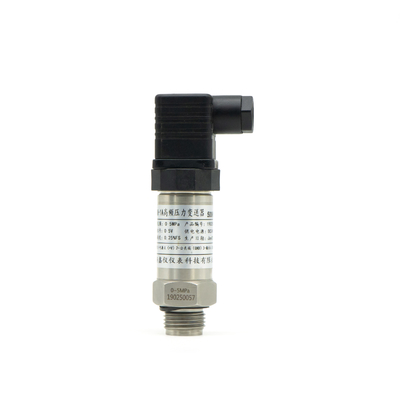

YWKM-1A High-Frequency Pressure Transducer for Dynamic Measurements (10KHz) - Lab Grade
| MOQ: | 1 |
| Standard Packaging: | carton |
| Delivery Period: | 5-8 work days |
| Payment Method: | L/C,D/A,D/P,T/T,Western Union |
| Supply Capacity: | 1000pcs/month |
Detail Information
Place of Origin
China
Brand Name
XINYI
Certification
CE
Model Number
YWKM-1A
Work Temperature:
- 40-100 ℃
Wetted Materials:
316L Stainless Steel
Housing Protection:
IP65
Material:
SS
Vibration:
20HZ-1KHZ To Mechanical Vibration
Output Signals:
4-20mA, 1-5V
Display:
LCD
Nominal Pressure:
(0.25-42) MPa
Protocol:
Hart
Over Pressure Capacity:
15 Times
Storage Temperature:
-40 To 85°C
Working Temp:
-25~+125℃
Flange Material:
316SST
Repeatability:
0.25%~0.5%
Highlight:
high-frequency pressure transducer
,dynamic pressure transducer 10KHz
,lab grade pressure transmitter
Product Description
YWKM-1A High-Frequency Pressure Transducer for Dynamic Measurements (10KHz) - Lab Grade
The YWKM-1A high-frequency dynamic pressure transmitter utilizes semiconductor silicon's exceptional Young's modulus of elasticity and mechanical properties to achieve high natural frequency. Our advanced structural design minimizes frequency loss, resulting in superior response frequency and rise time - making it ideal for high-frequency dynamic pressure measurement applications.
Key Technical Features
- High frequency response range with wide passband
- Broad operating temperature range
- Extensive measurement range with excellent long-term stability
- Flat-packaged pressure sensing film eliminates lumen effect
- Exceptional frequency response characteristics
Designed for demanding applications including military engineering, chemical explosion testing, petroleum exploration, materials science, and hydraulic machinery testing. The YWKM-1A provides accurate measurement of rapidly changing dynamic pressure waveforms with steep rise times, delivering distortion-free amplitude and effective value measurements.
Technical Specifications
| Measurement Range | 0-100psi |
|---|---|
| Output Signal | 4-20mA |
| Power Supply Voltage | 24VDC |
| Response Frequency | ≥5kHz |
| Response Time | Dynamic response less than 0.1ms |
| Working Temperature | -20℃～85℃ |
| Protection Level | IP65/IP67 |
| Media Compatibility | 316L stainless steel diaphragm |
Utilizing micro mechanical processing technology, this transducer features an integrated silicon diaphragm with small effective size and high natural frequency. Its superior elastic mechanical properties outperform piezoelectric dynamic pressure sensors, making it the recommended choice for explosive dynamic measurements per both US and Chinese military standards.
