E+H Cerabar PMP71B Flange Mounted Pressure Transmitter With 4-20mA Output
| MOQ: | 1 |
| Standard Packaging: | carton |
| Delivery Period: | 5-8 work days |
| Payment Method: | L/C,D/A,D/P,T/T,Western Union |
| Supply Capacity: | 1000pcs/Month |
Detail Information
Place of Origin
China
Brand Name
Endress+Hauser
Model Number
PMP71B
Document
Test Medium:
Air Oil And Water
Overpressure Limit:
2 Times The Maximum Range
Process Thread:
1/4NPT, 1/2NPT, M20*1.5
Measured Media:
Liquid, Gas And Steam
Workingtemperatue:
-40~+85℃
Product:
FOXBORO Valve Positioner
Best Accuracy:
0.1%
Medium Temperature:
-20~125℃
Specification:
500pa~200kpa
Housing Protection:
IP65
Color:
Lock Wire Diameter 5-8mm
Highlight:
E+H flange mounted pressure transmitter
,PMP71B 4-20mA pressure transmitter
,intelligent pressure transmitter with warranty
Product Description

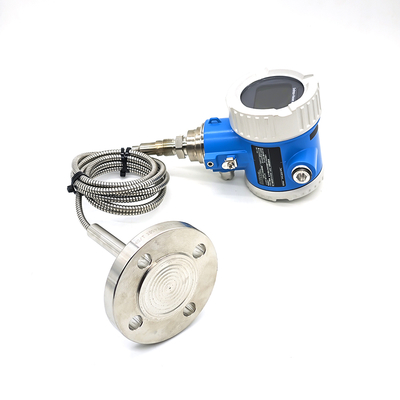

E+H Cerabar PMP71B Flange Mounted Pressure Transmitter With 4-20mA Output
Product Specifications
| Attribute | Value |
|---|---|
| Test Medium | Air, oil and water |
| Overpressure Limit | 2 times the maximum range |
| Process Thread | 1/4NPT, 1/2NPT, M20*1.5 |
| Measured Media | Liquid, gas and steam |
| Working Temperature | -40~+85℃ |
| Best Accuracy | 0.1% |
| Medium Temperature | -20~125℃ |
| Specification | 500pa~200kpa |
| Housing Protection | IP65 |
Product Description
The PMP71B is a member of the new generation Cerabar transmitter series, offering robust construction and reliable performance with secure Bluetooth connectivity. This flange-mounted pressure transmitter features intuitive operation and advanced diagnostic capabilities.
Key Advantages
- Heartbeat Technology enables health verification without interrupting production
- Visual status indication with color change (green to red) for immediate fault detection
- Reduces system failure probability with zero-error SIL debugging
- Wireless remote control capability via SmartBlue App within production areas
Technical Specifications
Power supply voltage:
4...20 mA HART
Measurement accuracy:
Up to 0.05%
Long-term stability:
0.05% of URL/year
Process temperature:
-40°C...+125°C
Ambient temperature:
-60°C...+80°C
Minimum calibratable range:
5 mbar
Maximum range ratio:
100:1
Maximum overvoltage limit:
1050 bar
Gasket material:
PTFE
