EJX910A High-Precision Industrial Sensor with Smart Connectivity for Automation Systems
| MOQ: | 1 |
| Standard Packaging: | carton |
| Delivery Period: | 5-8 work days |
| Payment Method: | L/C,D/A,D/P,T/T,Western Union |
| Supply Capacity: | 100pcs/Month |
Detail Information
Place of Origin
China
Brand Name
Yokogawa
Certification
CE
Model Number
EJX910A
Document
Measurement Range:
0-1000 KPa
Medium Temperature:
-40~+85℃
Display:
LCD
Mounting Method:
DIN Rail Or Wall Mount
Explosion Proof Level:
CT6
Electrical Connections:
Terminal Or M12
Interface Size:
M20*1.5(mm)
Working Temp:
-25~+125℃
Capability Change:
Less Than 0.16cm3
Thread Size:
1/2npt, 1/4npt, M20*1.5 Optional
Structure Type:
Diffused Silicon Pressure Transmitter
Housing Material:
Aluminum
Product Features:
Good Safety, Strong Adaptability
Highlight:
high-precision industrial sensor
,smart connectivity automation sensor
,intelligent pressure transmitter with warranty
Product Description
EJX910A High-Precision Industrial Sensor with Smart Connectivity for Automation Systems
Product Attributes
| Attribute | Value |
|---|---|
| Measurement Range | 0-1000 kPa |
| Medium Temperature | -40~+85℃ |
| Display | LCD |
| Mounting Method | DIN rail or wall mount |
| Explosion Proof Level | CT6 |
| Electrical Connections | Terminal or M12 |
| Interface Size | m20*1.5(mm) |
| Working Temp | -25~+125℃ |
| Capability Change | Less than 0.16cm3 |
| Thread Size | 1/2npt, 1/4npt, m20*1.5 optional |
| Structure Type | Diffused Silicon Pressure Transmitter |
| Housing Material | Aluminum |
| Product Features | Good safety, Strong adaptability |
Product Description

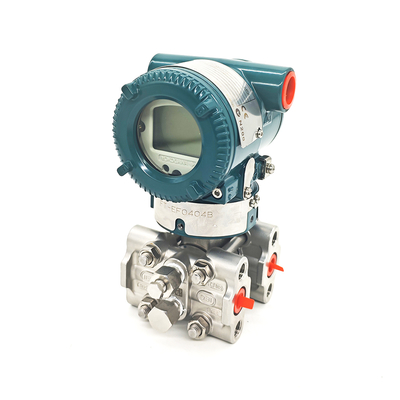

The EJX910A high-performance multivariable transmitter adopts a monocrystalline silicon resonant sensor, which can output measurements of differential pressure, static pressure, process temperature, and calculate mass flow rate. Supports multiple protocols such as HART, FOUNDATION fieldbus, and RS485 Modbus.
Key Features
- Supports orifice plates, nozzles, and Venturi tubes
- Under the HART7 protocol, also supports averaging tubes and conical flow meters
- Mass flow accuracy ±1.0%
- Fully compensates for mass flow
- Mass flow integrator with accuracy of ±1.0%
- Pulse/contact output
- TUV SIL 2/3 certification
- Multivariate measurement: Synchronously outputs differential pressure (accuracy ±0.04%), static pressure (accuracy ±0.1%), and temperature (±0.9°F) data
- Monocrystalline silicon resonant sensor provides long-term stability and high repeatability
Technical Specifications
| Product Name | Multi variable transmitter |
| Measurement medium | Liquid, gas, steam |
| Accuracy | ±0.04% |
| Signal output | 4~20mA DC |
| Gauge pressure range | -0.1~25 MPa |
| Manufacturer | Yokogawa |
| Long-term stability | ±0.1% URL/15 years |
| Static pressure | All capsules: 200 milliseconds |
| Overvoltage impact | ±0.03% URL |
