High Quality Yokogawa Eja530E Pressure Transmitter Difference Pressure Transmitter 4-20ma Pressure Transmitter
| MOQ: | 1 |
| Standard Packaging: | Carton |
| Delivery Period: | 10 work days |
| Payment Method: | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
| Supply Capacity: | 1000 PCS/ Month |
Detail Information
Place of Origin
China
Brand Name
Yokogawa
Certification
CE
Model Number
EJA530E
Type:
Absolute Pressure Transmitter
Material:
SS
Product Name:
EJA530E Pressure Transmitter
Output Signal:
4~20mA
Material:
Stainless Steel
Power Supply:
12~32VDC
Type:
Pressure Senor
Protection Class:
IP 65 Pressure Transmitter
Medium:
Air Water Oil
Pressure Type:
Guage Pressure
Highlight:
Yokogawa Eja530E pressure transmitter
,4-20ma pressure transmitter with warranty
,intelligent differential pressure transmitter
Product Description

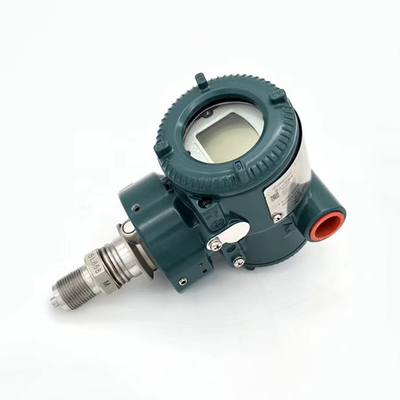

Yokogawa EJA530E High Performance Pressure Transmitter
Product Overview
The EJA510E/EJA530E series are high-performance absolute pressure and gauge pressure transmitters equipped with monocrystalline silicon resonant sensors, designed for measuring liquid, gas, or vapor pressure with exceptional accuracy.
Key Features
- Monocrystalline silicon resonant sensor technology for superior performance
- 4-20mA DC output signal with HART communication capability
- Compact and lightweight design (50% lighter than traditional models)
- Fieldbus communication options (Foundation fieldbus and PROFIBUS PA)
- SIL 2 safety certified (standard models)
- Excellent long-term stability with minimal hysteresis
Technical Specifications
| Measurement Accuracy | ±0.055% (EJA530E model) |
|---|---|
| Stability | ±0.1% range upper limit/12 months |
| Measuring Range | 10KPa-50MPa |
| Output Signal | 4-20mA with HART digital communication protocol |
| Power Supply | DC24V (12-32VDC range) |
| Ambient Temperature | -40°C to 85°C |
| Process Temperature | -40°C to 120°C |
| Process Connection | Threaded |
| Protection Class | IP65 |
Product Attributes
| Type | Absolute Pressure Transmitter |
|---|---|
| Material | Stainless Steel |
| Output Signal | 4~20mA |
| Power Supply | 12~32VDC |
| Medium | Air, Water, Oil |
| Pressure Type | Gauge Pressure |
Advanced Features
The EJA series offers fieldbus communication capability, including Foundation fieldbus low voltage mode and PROFIBUS PA devices, ensuring interoperability with other manufacturers. The series includes two AI function blocks for calculating differential pressure and static pressure for flexible instrument configuration.
