Endress+Hauser PMP51 Digital Pressure Transmitter With 4-20mA Output HART Protocol
| MOQ: | 1 |
| Standard Packaging: | carton |
| Delivery Period: | 5-8 work days |
| Payment Method: | L/C,D/A,D/P,T/T,Western Union |
| Supply Capacity: | 100pcs/month |
Detail Information
Place of Origin
China
Brand Name
Endress+Hauser
Model Number
PMP51
Document
Electrical Connector:
Terminal Block, Cable
Span Limits:
0.3 ... 10000 KPa
Protection Level:
IP65
Quality:
High Quality
Response Time:
≤ 100 Ms
Process Connector:
1.5”clamp , DN25, DN50, DN80
Vibration:
20HZ-1KHZ To Mechanical Vibration
Sensor Material:
316L
Gasket Material:
PTFE
Protection Class:
IP66/67
Output:
0.5-4.5V 4-20mA RS485 AND So On
Keywords:
Wind Differential Pressure Transmitter
Primary Variable:
Differential Pressure
Highlight:
PMP51 digital pressure transmitter
,HART protocol pressure transmitter
,4-20mA output pressure transmitter
Product Description

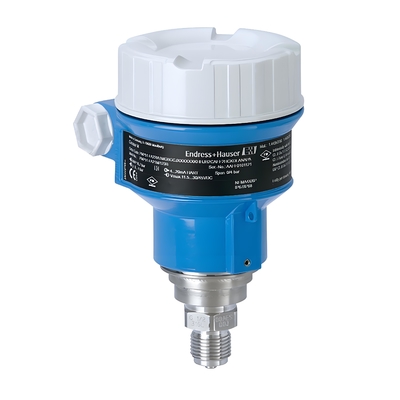

Endress+Hauser PMP51 Digital Pressure Transmitter With 4-20mA Output HART Protocol
Product Overview
The Cerabar PMP51 digital pressure transmitter features a metal diaphragm design for precise pressure, liquid level, volume, and mass measurement in process and hygiene industries. Engineered for high-pressure applications with a maximum working pressure of 400 bar, it offers adjustable ranges and quick setting functionality to optimize efficiency.
Key Specifications
| Attribute | Value |
|---|---|
| Electrical Connector | Terminal block, Cable |
| Span Limits | 0.3 ... 10000 kPa |
| Protection Level | IP65 |
| Response Time | ≤ 100 ms |
| Process Connector | 1.5”clamp, DN25, DN50, DN80 |
| Vibration Resistance | 20HZ-1KHZ to mechanical vibration |
| Sensor Material | 316L |
| Gasket Material | PTFE |
| Protection Class | IP66/67 |
| Output | 0.5-4.5V, 4-20mA RS485 |
| Primary Variable | Differential Pressure |
Technical Features
- Process connections: threaded, flanged, or sanitary options
- Wide temperature range: -40 to +130°C (-40 to +266°F), with 150°C (302°F) capability for 1 hour
- Pressure range: +400mbar to +400bar (+15 to +6000psi)
- High accuracy: ±0.1%, "Platinum version" ±0.075%
- Certifications: International Explosion Protection, SIL, Sanitary, and classification
Product Advantages
- Maintains accuracy despite process temperature variations
- Excellent repeatability and long-term stability (<0.1% URL/year)
- SIL2 compliant process pressure monitoring with IEC 61508/61511 certification
- Modular design for differential pressure, static pressure, and pressure measurement
- User-friendly operation via display module or remote communication (HART, PROFIBUS PA, FOUNDATION Fieldbus)
- Optional valve group installation with pressure testing capability
Performance Specifications
Power Supply Voltage
4...20 mA HART
Measurement Accuracy
Standard type: 0.15%
Process Temperature
-40...130 °C
Ambient Temperature
-40...85 °C
Sensor Range
400 mbar...400 bar
Minimum Calibratable Range
20 mbar
Vacuum Pressure Resistance
10 mbar
Maximum Range Ratio
20:1
Housing Material
Cast aluminum AISI 316L
