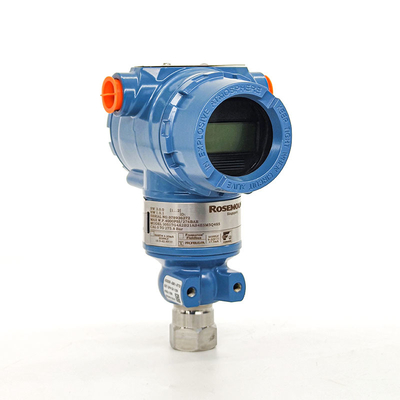

Rosemount 3051TG Intelligent Pressure Transmitter 4-20mA LCD Display Transmitter

MOQ:	1
Standard Packaging:	carton
Delivery Period:	5-8 work days
Payment Method:	L/C,D/A,D/P,T/T,Western Union
Supply Capacity:	100 pcs/Month

Details Information

Product Description

Detail Information

Place of Origin

China

Brand Name

Rosemount

Certification

Model Number

3051TG

Medium:

Liquids Or Gases Compatible With 316LSS

Measure Range:

0-100mpa

Type:

Differential Pressure Transmitter

Origin:

China

Ambient Temperature:

-40...85 °C

Measuring Principle:

Absolute And Gauge Pressure

Protection Rating:

Vacuum Resistance:

10 Mbar (0.15 Psi)

Supply:

Current Output:

4-20mA 2 Wires Hart Protocol

Process Temperature:

-40~100℃

Package Type:

Standard Export Packing By Carton

Long Term Stability:

0.1%F.S/Y(≤2000KPa)

Operating Temperature Range:

-40 To 85°C

Product Description

Rosemount 3051TG Intelligent Pressure Transmitter

4-20mA LCD Display Transmitter

Key Specifications

Measurement Range:

0-100MPa

Accuracy:

±0.075% FS

Output Signal:

4-20mA 2-wire HART Protocol

Protection Rating:

Product Overview

The Rosemount 3051TG is an intelligent pressure transmitter designed for precise absolute and gauge pressure measurement in industrial applications. Featuring a 4-20mA output with HART protocol communication and LCD display, this transmitter delivers reliable performance for liquids or gases compatible with 316L stainless steel.

Attribute	Specification
Medium	Liquids or gases compatible with 316LSS
Type	Differential Pressure Transmitter
Ambient Temperature	-40 to 85°C
Process Temperature	-40 to 100°C
Measuring Principle	Absolute and gauge pressure
Vacuum Resistance	10 mbar (0.15 psi)
Long Term Stability	0.1%F.S/Y(≤2000KPa)

Technical Features

High accuracy ±0.075% full scale
Wide measurement range from -14.7 to 10000 psi
100:1 range ratio for flexible application
316L stainless steel or Hastelloy C-276 diaphragm options
Multiple process connection options including NPT and metric threads
Robust construction with IP67 protection rating
Excellent long-term stability of 0.1% FS per year

Operating Principle

The 3051TG transmitter utilizes a tensioned elastic sensing diaphragm that displaces proportionally to applied pressure. This displacement is detected by capacitive plates, with the capacitance difference converted to a precise 4-20mA output signal with HART protocol communication capability.

Additional Specifications

Minimum Measurable Pressure:

-101 kPa

Stability:

±0.125%

Working Voltage:

10.5-55V DC

Process Connections:

1/4-18NPT, 1/2-14NPT, G1/2, M20×1.5
