XY125P Diffusion Silicone Oil Filled Pressure Sensor For Refrigerant/Gas/Water
  • Name
  • Name
  • Name
  • Name

XY125P Diffusion Silicone Oil Filled Pressure Sensor For Refrigerant/Gas/Water

MOQ: 1
Standard Packaging: carton
Delivery Period: 5-8 work days
Payment Method: L/C,D/A,D/P,T/T,Western Union
Supply Capacity: 100pcs/Month
Details Information
Product Description
Detail Information
Place of Origin
China
Brand Name
XINYI
Certification
CE
Model Number
XY125P
Pressure Type:
Gauge/Differential Pressure
Thread Connection Type:
1/2 Or 1/4npt
Process Connection:
1/4" NPT
Thread Size:
1/2npt, 1/4npt, M20*1.5 Optional
Usage:
Industrial Usage
Positioning Accuracy:
±0.1%
Pressure Range:
-0.1-100Mpa
Output Signals:
4-20mA, 1-5V
Repeatability:
0.25%~0.5%
The Process Temperature:
-40-120℃
Housing Material:
Aluminum14
Diaphragm Material:
316L Stainless Steel
Customization:
OEM
Product Description

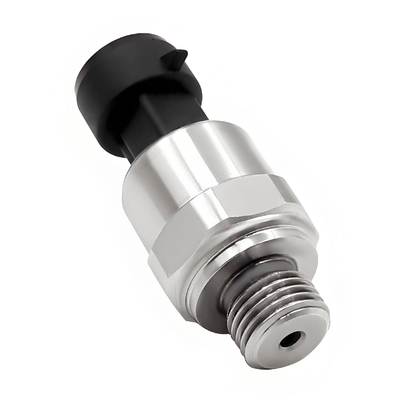

XY125P Diffusion Silicone Oil Filled Pressure Sensor For Refrigerant/Gas/Water


The XY125P is a silicon oil-filled diffuser pressure sensor designed for automotive use. The element is constructed of a fully welded 316L diaphragm and requires no O-ring seals that may come into contact with the medium pressure, making it compatible with all types of fluids. The absence of moving parts results in a longer service life. Featuring high temperature stability and accuracy, this pressure sensor is primarily used in automotive, transmission, air conditioning, and oil pressure measurement applications.


Multiple process connection options for easy installation. 1% typical accuracy, providing excellent precision for critical applications. Factory calibrated, no field calibration required. Plug-and-play reliability. Rugged, compact design saves installation space. OEM/ODM available to meet special needs.


Maximum measuring range 400 Bar and Above
Power Supply 4.75~5.25VDC
Supply current 15mA MAX
Pressure range 0~5Bar,0~10Bar,0~20Bar,0~40Bar,
Output 0.5V~4.5V DC
Process Connection G1/4,7/16-UNFfemale
Working Temperature Working Temperature
Storage Temperature -50~135
Safe Pressure 1.5~2 times of the pressure range
Burst Pressure 100 Bar

XY125P Diffusion Silicone Oil Filled Pressure Sensor For Refrigerant/Gas/Water 0
