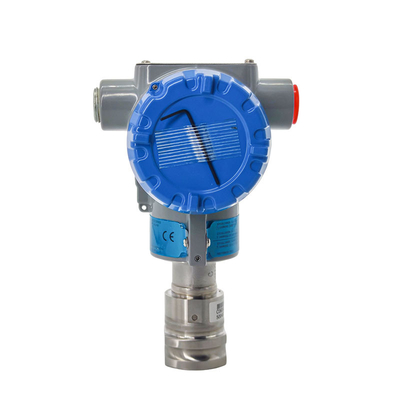

SmartLine Honeywell ST700/ST800 Series Intelligent Differential Pressure Transmitter
  • Name
  • Name
  • Name
  • Name

SmartLine Honeywell ST700/ST800 Series Intelligent Differential Pressure Transmitter

MOQ: 1
Standard Packaging: carton
Delivery Period: 5-8 work days
Payment Method: D/A,L/C,D/P,T/T,Western Union
Supply Capacity: 100PCS/Months
Details Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Honeywell
Certification
CE
Model Number
ST700/ST800
Best Accuracy:
0.1%
Protection Rating:
IP67
Temperature:
Ambient Temperature -40-85℃
Operate Temperature:
-20~150℃
Communication Interface:
Standard 4~20mA,RS-485
Min Range:
10kpa
Material:
Stainless Steel
Output Signal:
4-20 MA
Storage Temp:
-40~100℃
Accuracy Class:
± 0 . 075~±0 .2 %
Product Description

Product Description


SmartLine Honeywell ST700/ST800 Series Intelligent Differential Pressure Transmitter


Smartline ST700 Flush Mount Pressure Transmitter for direct insertion in processes with the use of a 1” sleeve, welded into the process line. It is primarily used for pressure measurement in the head box of pulp and paper plants.


The Flush Mount Pressure Transmitter, is available in ranges from 0-1 to 0-100 psig and can be installed in a variety of hazardous locations. The flush mounting capability eliminates the possibility of clogging while the insertion design makes the transmitter change out rapid and trouble-free.


Accuracy: up to 0.065% (calibrated range), some models can reach 0.05% 45;
Stability: Drift ≤ 0.025% of full range per year within 5 years, with outstanding long-term reliability;
Automatic compensation: Integrated temperature and static pressure sensors, real-time correction of environmental errors;
Electronic modules, sensors, and display heads can all be replaced on-site, supporting external zero and range adjustments for easy maintenance;
The display header supports 0 °/90 °/180 °/270 ° rotation, and can be selected from basic LCD or large screen models;
Meets SIL 2/3 safety level and has passed explosion-proof certifications such as ANSI/NFPA 70-202;
Supports 4-20mA, HART, FF fieldbus, and Honeywell DE protocol;


Range  0~100kPa to 0~69MPa
Range ratio Range ratio
Response time ≤100ms
Medium temperature -30℃~125℃
Protection grade IP65


SmartLine Honeywell ST700/ST800 Series Intelligent Differential Pressure Transmitter 0
