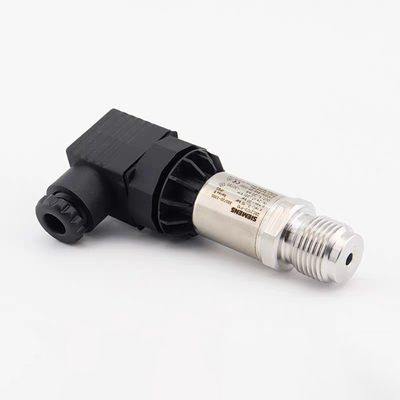

Siemens Water Pressure Sensor 7MF1565 Series Measure Gases Liquids And Vapors
| MOQ: | 1 |
| Standard Packaging: | carton |
| Delivery Period: | 5-8 work days |
| Payment Method: | L/C,D/A,D/P,T/T,Western Union |
| Supply Capacity: | 1000pcs/Month |
Siemens Water Pressure Sensor 7MF1565 Series Measure Gases Liquids and Vapors
The pressure transmitter consists of a piezoresistive measuring cell with a membrane, installed in a stainless steel housing. It can be electrically connected with a plug according to EN 175301-803-A (IP65), a circular connector M12 (IP67), a cable (IP67) or a cable quick-release screw connection (IP67). The output signal is 4 to 20 mA or 0 to 10 V.
1.High precision and wide range
The measurement accuracy reaches ± 0.075% full scale (FS), and the long-term stability is better than 0.1%/year, suitable for high-precision industrial scenarios；
Supports a wide range of 1 kPa to 60 bar (depending on the model), with a range ratio of up to 100:1, and a single device can cover multiple operating conditions;
2.Durable design and compatibility
All stainless steel shell (316L material) and ceramic measuring unit, with strong corrosion resistance, suitable for gas, liquid and steam media；
Protection level IP65/IP67, certified by EN 175301-803-A, suitable for harsh environments；
3.Intelligent signal processing
Built in microprocessor for temperature compensation (-40~85 ℃) and linearization processing, outputting 4-20mA or 0-10V standard signals, compatible with HART/PROFIBUS PA protocol;
EMC anti-interference design, compliant with IEC 61326 standard, ensuring stable operation in strong electromagnetic environments;
| Measuring range | 0~10 bar |
| Accuracy class | ±0.25% |
| Output signal | 4~20mA (two-wire system) |
| Material | Ceramic sensor+316L stainless steel casing |
| Protection level | IP65/IP67 |
| Interface | G1/2 "thread |
| Temperature compensation | -40~85℃ |
