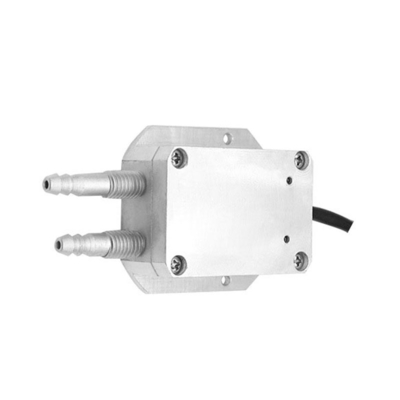

Wind Pressure Transmitter with ±0.1% Accuracy IP67
| MOQ: | 1 |
| Standard Packaging: | carton |
| Delivery Period: | 5-8 work days |
| Payment Method: | L/C,D/A,D/P,T/T,Western Union |
| Supply Capacity: | 1000pcs/ months |
Detail Information
Place of Origin
China
Brand Name
XINYI
Certification
CE
Process Thread:
1/4NPT, 1/2NPT, M20*1.5
Medium Temperature:
-40~104℃
Power Supply:
10-30 VDC
Electrical Interface:
M20*1.5 Or 1/2npt
Voltage:
1-5 (V)
Accuracy:
±0.1% Of Span
Measuring Range:
0 ~ 50 MPa
Ingress Protection:
IP67
Transmitter Type:
Capacitive Pressure Transmitter
Highlight:
high accuracy wind pressure transmitter
,IP67 rated pressure transmitter
,intelligent wind pressure sensor
Product Description
Wind Pressure Transmitter, Gas Micro Differential Pressure Negative Pressure Sensor
Product Specifications
| Attribute | Value |
|---|---|
| Process Thread | 1/4NPT, 1/2NPT, M20*1.5 |
| Medium Temperature | -40~104℃ |
| Power Supply | 10-30 VDC |
| Electrical Interface | M20*1.5 or 1/2npt |
| Voltage | 1-5 (V) |
| Accuracy | ±0.1% of span |
| Measuring Range | 0 ~ 50 MPa |
| Ingress Protection | IP67 |
| Transmitter Type | Capacitive pressure transmitter |
Product Description
This differential pressure sensor features a refined silicon piezoresistive differential pressure core with an aluminum alloy or stainless steel housing. The pressure interfaces use M10 thread and plug structure for direct pipeline installation or pressure pipe connection.
Ideal for applications in dust removal equipment, boiler air supply, underground ventilation, power and coal industries, as well as process control of leakage pressure for packaging materials in beverage, paint, and canning industries.
Key Features
- High precision and stability: Uses imported pressure chips and diffusion silicon sensor technology with Wheatstone bridge output. Long-term stability of 0.2 years.
- Strong protection and reliability: Features reverse protection and current limiting circuits with solid-state structure for harsh environments. Corrosion-resistant die-cast alloy aluminum shells available.
- Flexible installation: Supports multiple interface forms and lead methods with easy integration. Some models include digital display and on-site parameter adjustment.
Technical Specifications
| Measurement accuracy | 0.2%FS |
| Overload pressure | 250%FS |
| Power supply | 12-36VDC |
| Medium temperature | 0-40℃ |
| Stability performance | ±0.1%FS/year |
| Threaded interface | M10*1.5 |
| Measuring range | -100KPA-100KPA |
| Output signal | 4-20mA |
